Air-cooled chiller vs water-cooled chiller decisions shape the backbone of industrial chillers and commercial chiller systems, determining efficiency, cost, and reliability for factories, hospitals, data centers, and office complexes. While both generate chilled water for HVAC chiller selection guide applications, air-cooled chillers reject heat via fans while water-cooled chillers use cooling towers – each suited to specific site conditions, water availability, and scale. In India’s diverse climates—from water-scarce rooftops to industrial plants with towers – this chiller system comparison guides facility managers toward optimal commercial chiller systems.
This technical analysis compares principles, installation, maintenance, and applications, featuring ALD TRADE CO’s verified chiller solutions for Delhi NCR projects.
What Is an Air-Cooled Chiller?
Air-cooled chillers use ambient air to reject condenser heat, eliminating water infrastructure needs.
Basic Working Principle:
- Refrigerant condenses in finned coils.
- Multiple axial fans (2-8) draw air across coils.
- Heat transfers to atmosphere; no tower required.
Typical Installation Locations: Rooftops, ground pads with 2m clearance.
Common Use Cases: Factories without water, rooftop commercial buildings, modular expansions.
What Is a Water-Cooled Chiller?
Water-cooled chillers leverage cooling tower water for condenser heat rejection, offering controlled environments.
Heat Rejection Using Water:
- Shell-tube condenser exchanges heat with tower water (30-35°C).
- Warm water returns to tower for evaporation/cooling.
Role of Cooling Towers: Open/closed circuit towers reduce water temperature via fans and fill media.
Installation Requirements: Indoor machine room + outdoor tower; water treatment systems.
Typical Applications: Large plants, hospitals, hotels with water access.

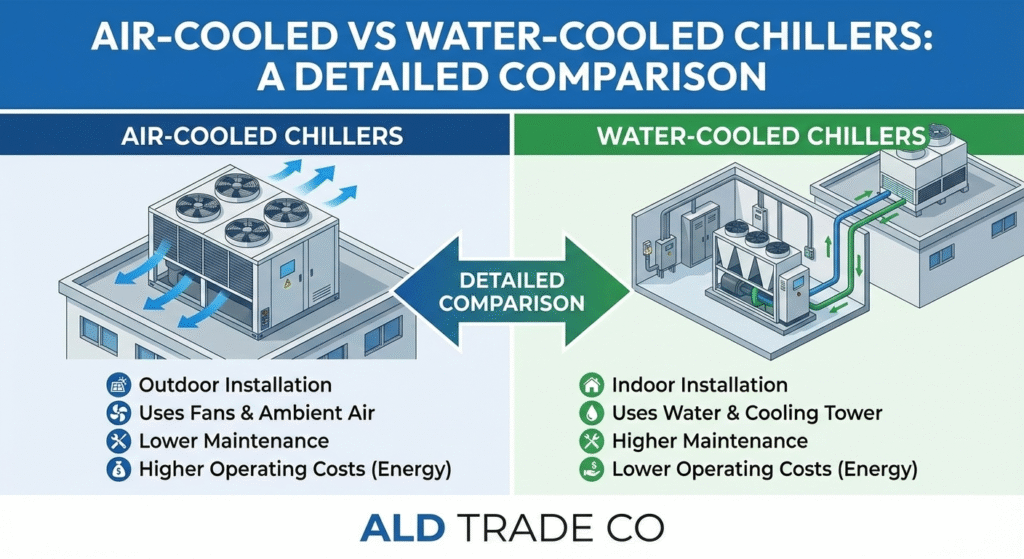

Key Differences: Air-Cooled vs Water-Cooled Chillers
| Parameter | Air-Cooled Chiller | Water-Cooled Chiller |
|---|---|---|
| Heat Rejection | Ambient air via fans | Cooling tower water |
| Installation | Rooftop/ground; minimal plumbing | Indoor + tower; piping/treatment |
| Space | Larger footprint (fans/coils) | Compact indoor unit |
| Water Consumption | None | 3-5 LPM/TR + makeup |
| Maintenance | Fan/coil cleaning | Tower treatment, pumps, strainers |
| Suitability | Water-scarce, modular sites | High-capacity, continuous operations |
Operational Notes: Air-cooled for <100 TR rooftops; water-cooled scales to 500+ TR plants.
ALD Trade Co’s Chiller Solutions
ALD Trade Co chillers provide both types with professional support:
Air-Cooled Options:
- Voltas 10 TR Air-Cooled Chiller – 10 TR capacity for rooftop industrial use.
- Voltas 20 TR Air-Cooled Chiller – 20 TR air-cooled system for factories/warehouses.
Water-Cooled Options:
- Voltas 2 TR Water-Cooled Chiller – Compact 2 TR water-cooled unit for small commercial setups.
- Voltas 5 TR Water-Cooled Chiller – 5 TR water-cooled chiller for offices/hotels.
Genuine Voltas units with installation and AMC(Annual Maintenance Contract) from ALD Trade Co.
Benefits of Air-Cooled Chillers
- Easier Installation: No towers/piping; rooftop crane delivery.
- Lower Water Dependency: Ideal Rajasthan/Delhi outskirts.
- Suitable Limited Water Areas: No treatment chemicals.
- Reduced Infrastructure: Minimal civil work.
Benefits of Water-Cooled Chillers
- Effective Large-Scale Cooling: Scales seamlessly.
- Stable Controlled Environments: Indoor protection.
- Suitable High-Capacity: Multi-compressor arrays.
Which Chiller System Should You Choose?
Application-Based Guide:
- Rooftop/Small-Medium (<50 TR): Air-cooled Voltas 10 TR.
- Indoor/High-Load (>50 TR): Water-cooled Voltas 5 TR + tower.
Decision Matrix:
| Factor | Choose Air-Cooled If… | Choose Water-Cooled If… |
|---|---|---|
| Water | Scarce/unreliable | Available/treated |
| Space | Rooftop available | Indoor room + tower |
| Budget | Lower capex | Long-term opex savings |
| Maintenance | Basic staff | Dedicated team |
HVAC Chiller Selection Guide: Site survey essential (ALD Trade Co offers free audits).
Installation & Maintenance Considerations
Power/Space Planning:
- Air-Cooled: 415V 3-phase; 4x unit length clearance.
- Water-Cooled: + Tower footprint; softener/DM plant.
Cooling Tower Maintenance: Biocide dosing, fill replacement.
Preventive Servicing: Quarterly filters; annual refrigerant.
Professional Installation: Vibration isolation, commissioning.
AMC Role: Covers towers, pumps; ensures compliance.
Outbound Authority Links
- ASHRAE Chiller Standards – Design guidelines.
- DOE Chiller Comparison – System selection.
Make the Right Chiller Choice for Your Operation
Air-cooled chiller vs water-cooled chiller boils down to site constraints, scale, and water logistics—both excel as industrial chillers when matched correctly.
Expert Consultation:
- Free site survey: +91-9211392655 ,or +91-7827748956 | aldtradeco.com
Partner with ALD TRADE CO for proven commercial chiller systems.
